Round Slings




  Subho Dyneema Round Sling
The material for Dyneema Round Sling is UHMWPE Yarns: Ultra-High Molecular Weight Polyethylene Yarn
»
 UHMWPE Fiber
»
The UHMWPE Material has a high resistance against chemicals combined with a very high cut and abrasion resistance, leading to an excellent performance product.
»
 UHMWPE is a World's strongest fibre that offers maximum strength combined with minimum weight.
»

UHMWPE is a synthetic / manmade material that is used for making easy to handle large capacity lifting slings that are flexible, lighter weight and much more compact than polyester slings;

»
Though these lifting slings are expensive to purchase they start to re-pay their original extra cost as soon as they are put into the work place lifting expensive heavy loads (without causing damage to the goods) with productivity and time savings all achievable due to the compact, light weight and easy to handle properties of the sling.
»
UHMWPE slings don't absorb water and therefore they are particularly suitable for use offshore as used by shipping and the oil and gas industries.




  Advantages of Dyneema Round Sling
»

Low Elongation. Easy Handling. Lower utilisation costs.
»
 Higher lifting efficiencies. Lower lifting costs.
»
 Less rigging hours. Save on labour costs.
»
 Less damage to the load.
...............................................................................................................................................................................................................................................

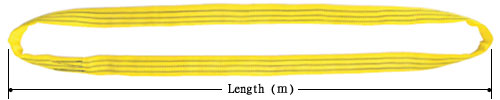

  Polyester Round Sling


Roundslings are manufactured to EN1492-2:2000 from high tenacity polyester yarn encased in a colour coded tubular sleeve of durable woven polyester fabric. The sleeve is constructed to protect the internal rows of yarn filament and keep them in a parallel formation at all times. The low stretch characteristics of the polyester yarn also prevents "load bounce" when lifting very heavy weights.
  Working Load Limit with 1 Round Sling
Item
Colourcoded
according to
EN1492-2
Straight Lift
Choke Lift
U Type lift

Basket lift 450
Basket lift 900
1.0
0.8
2.0
1.8
1.4
SL-01
WLL 1T
1.000
800
2.000
1.400
1.000
SL-02
WLL 2T
2.000
1600
4.000
2.800
2.000
SL-03
WLL 3T
3.000
2400
6.000
4.200
3.000
SL-04
WLL 4T
4.000
3200
8.000
5.600
4.000
SL-05
WLL 5T
5.000
4000
10.000
7.000
5.000
SL-06
WLL 6T
6.000
4800
12.000
8.400
6.000
SL-08
WLL 8T
8.000
6400
16.000
11.200
8.000
SL-10
WLL 10T
10.000
8000
20.000
14.000
10.000
SL-12
WLL 12T
12.000
9600
24.000
16.800
12.000

I
I
I
I
