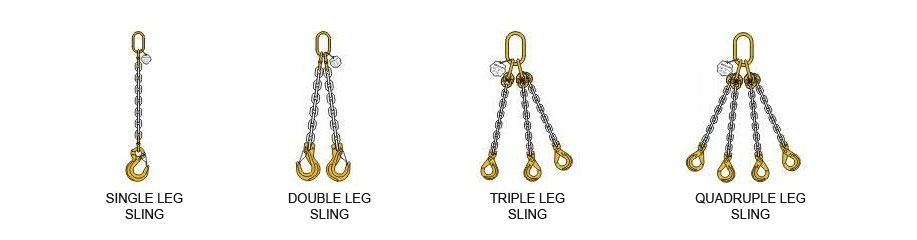

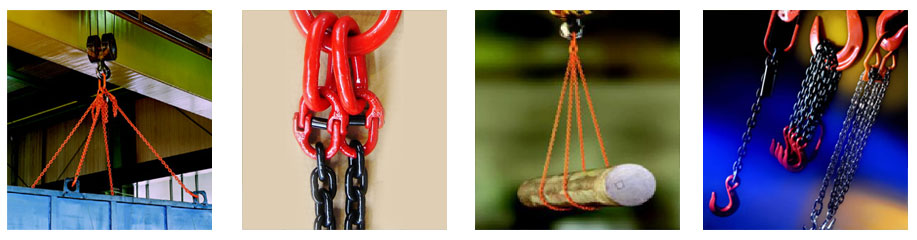

| Grade 80 Chain Sling |
|
| ..................................................................................................................................................................................................................................... |
| Grade 80 Connecting Link, European Type |
ITEM |
CHAIN SIZE/MM |
WLL/TON |
N.W./KGS |
8-CNL-06 |
6 |
1.12 |
0.08 |
8-CNL-07 |
7 |
1.5 |
0.145 |
8-CNL-7/8 |
7 + 8 |
2 |
0.146 |
8-CNL-8 |
8 |
2 |
0.16 |
8-CNL-10 |
10 |
3.15 |
0.30 |
8-CNL-13 |
13 |
5.3 |
0.70 |
8-CNL-16 |
16 |
8 |
1.1 |
8-CNL-18 |
18 |
10 |
1.84 |
8-CNL-18/20 |
18 + 20 |
12.5 |
1.84 |
8-CNL-22 |
22 |
15 |
3.2 |
8-CNL-26 |
26 |
21.2 |
4.5 |
8-CNL-32 |
32 |
31.5 |
9 |
|
|
|
| ..................................................................................................................................................................................................................................... |
| Grade 80 eye self locking hook |
ITEM |
W.L.L |
WEIGHT |
SIZE |
A |
B |
ø1 |
ø2 |
t |
kg |
(mm) |
(mm) |
(mm) |
(mm) |
GE8061 |
1.12 |
0.25 |
6-8 |
110 |
73 |
19 |
37 |
GE8062 |
2 |
0.50 |
7/8-8 |
140 |
92 |
28 |
51 |
GE8063 |
3.15 |
0.77 |
10-8 |
162 |
104 |
31 |
61 |
GE8064 |
5.3 |
1.52 |
13-8 |
201 |
127 |
39 |
74 |
GE8065 |
8 |
3.27 |
16-8 |
256 |
165 |
51 |
97 |
GE8066 |
8 |
6.80 |
20-8 |
317 |
192 |
62 |
119 |
|
|
|
| ..................................................................................................................................................................................................................................... |
| Grade 80 Master Link, European Type |
ITEM |
WLL/T |
B.L./T |
A |
B |
D |
WEIGHT/kg |
8-MKE-0708 |
3.2 |
12.8 |
120 |
70 |
14 |
0.44 |
8-MKE-1008 |
4 |
16 |
140 |
80 |
17 |
0.76 |
8-MKE-0013 |
6.3 |
25.2 |
150 |
90 |
19 |
1.03 |
8-MKE-1310 |
8 |
32 |
160 |
95 |
22 |
1.50 |
8-MKE-0016 |
11.5 |
46 |
180 |
110 |
25 |
2.17 |
8-MKE-1613 |
15 |
60 |
190 |
105 |
28 |
2.84 |
8-MKE-0019 |
17 |
68 |
200 |
120 |
30 |
3.50 |
8-MKE-2216 |
20 |
80 |
240 |
140 |
34 |
5.32 |
8-MKE-0026 |
25 |
100 |
250 |
150 |
38 |
7.04 |
8-MKE-2619 |
30 |
120 |
250 |
150 |
40 |
7.86 |
8-MKE-3222 |
37 |
148 |
300 |
180 |
45 |
11.82 |
8-MKE-3226 |
43 |
172 |
300 |
200 |
50 |
15.20 |
8-MKE-3632 |
56 |
224 |
350 |
200 |
55 |
20.54 |
8-MKE-4536 |
70 |
280 |
375 |
210 |
60 |
26 |
|
|
|
| ..................................................................................................................................................................................................................................... |
| Grade 80 Master Link Assembly, European Type |
ITEM |
WLL/T |
B.L./T |
A |
B |
D |
a |
b |
d |
WEIGHT/kg |
8-MAE-0006 |
3.1 |
12.4 |
130 |
60 |
14 |
30 |
16 |
10 |
0.6 |
8-MAE-0708 |
4.6 |
18.4 |
160 |
90 |
20 |
60 |
35 |
13 |
1.6 |
8-MAE-0010 |
7.8 |
31.2 |
195 |
110 |
25 |
80 |
40 |
16 |
3.08 |
8-MAE-0013 |
14 |
56 |
240 |
140 |
32 |
90 |
50 |
22 |
6.5 |
8-MAE-0016 |
24.8 |
99.2 |
270 |
140 |
40 |
100 |
60 |
28 |
11.6 |
8-MAE-1820 |
33.3 |
133.2 |
300 |
155 |
45 |
180 |
100 |
32 |
17 |
8-MAE-0022 |
37.1 |
148.4 |
350 |
190 |
50 |
180 |
100 |
40 |
26.4 |
8-MAE-0026 |
50 |
200 |
410 |
220 |
60 |
200 |
110 |
45 |
42.3 |
8-MAE-0032 |
74.8 |
299.2 |
420 |
250 |
70 |
200 |
110 |
50 |
61 |
|
|
|
| ..................................................................................................................................................................................................................................... |
| Grade 80 Swivel Hook |
ITEM |
CHAIN SIZE/MM |
WLL/TON |
N.W./KGS |
8-SWH-06 |
6 |
1.25 |
0.38 |
8-SWH-08 |
7 + 8 |
2 |
1.00 |
8-SWH-10 |
10 |
3.2 |
1.20 |
8-SWH-13 |
13 |
5.4 |
2.08 |
8-SWH-16 |
16 |
8.2 |
4.45 |
8-SWH-20 |
18 + 20 |
12.5 |
7.40 |
8-SWH-22 |
22 |
15 |
10 |
|
|
|
| ..................................................................................................................................................................................................................................... |
| D Shackle |
ITEM |
Size |
Working Load Limit (tons) |
Dimensions
(mm) |
Weight |
(n) |
A |
B |
C |
D |
E |
F |
G |
H |
I |
M |
Each(kg) |
SK8061 |
1/4 |
1/2 |
11.9 |
7.85 |
6.35 |
6.35 |
24.6 |
15.5 |
22.4 |
40.4 |
4.85 |
35.1 |
0.05 |
SK8062 |
5/16 |
3/4 |
13.5 |
9.65 |
7.85 |
7.85 |
29.5 |
19.1 |
26.2 |
48.5 |
5.60 |
42.2 |
0.08 |
SK8063 |
3/8 |
1 |
16.8 |
11.2 |
9.65 |
9.65 |
35.8 |
23.1 |
31.8 |
58.5 |
6.35 |
51.5 |
0.13 |
SK8064 |
7/16 |
1-1/2 |
19.1 |
12.7 |
11.2 |
11.2 |
41.4 |
26.9 |
36.6 |
67.5 |
7.85 |
60.5 |
0.20 |
SK8065 |
1/2 |
2 |
20.6 |
16.0 |
12.7 |
12.7 |
46.0 |
30.2 |
41.4 |
77.0 |
9.65 |
68.5 |
0.27 |
SK8066 |
5/8 |
3-1/4 |
26.9 |
19.1 |
15.7 |
16.0 |
58.5 |
38.1 |
51.0 |
95.5 |
11.2 |
85.0 |
0.57 |
SK8067 |
3/4 |
4-3/4 |
31.8 |
22.4 |
20.6 |
19.1 |
70.0 |
46.0 |
60.5 |
115 |
12.7 |
101 |
1.20 |
SK8068 |
7/8 |
6-1/2 |
36.6 |
25.4 |
24.6 |
22.4 |
81.0 |
53.0 |
71.5 |
135 |
12.7 |
114 |
1.43 |
SK8069 |
1 |
8-1/2 |
42.9 |
28.7 |
25.4 |
25.4 |
93.5 |
60.5 |
81.0 |
151 |
14.2 |
129 |
2.15 |
SK8070 |
1-1/8 |
9-1/2 |
46.0 |
31.8 |
31.8 |
28.7 |
103 |
68.5 |
91.0 |
172 |
16.0 |
142 |
3.06 |
SK8071 |
1-1/4 |
12 |
51.5 |
35.1 |
35.1 |
31.8 |
115 |
76.0 |
100 |
191 |
17.5 |
156 |
4.11 |
SK8072 |
1-3/8 |
13-1/2 |
57.0 |
38.1 |
38.1 |
35.1 |
127 |
84.0 |
111 |
210 |
19.1 |
174 |
5.28 |
SK8073 |
1-1/2 |
17 |
60.5 |
14.1 |
41.1 |
38.1 |
137 |
92.0 |
122 |
230 |
20.6 |
187 |
7.23 |
SK8074 |
1-3/4 |
25 |
73.0 |
51.0 |
54.0 |
44.5 |
162 |
106 |
146 |
279 |
25.4 |
231 |
12.1 |
SK8075 |
2 |
35 |
82.5 |
57.0 |
51.0 |
51.0 |
184 |
122 |
172 |
312 |
31.0 |
263 |
19.2 |
SK8076 |
2-1/2 |
55 |
105 |
70.0 |
66.5 |
66.5 |
238 |
145 |
203 |
377 |
35.1 |
330 |
32.5 |
|
|
|
| ..................................................................................................................................................................................................................................... |
| Bow Shackle |
ITEM |
Size |
Working Load Limit (tons) |
Dimensions
(mm) |
Weight |
(n) |
A |
B |
C |
D |
E |
F |
G |
H |
I |
M |
N |
Each(kg) |
SK8001 |
3/16 |
1.3 |
9.65 |
6.35 |
22.4 |
4.85 |
15.2 |
14.2 |
24.9 |
37.3 |
4.06 |
28.4 |
4.85 |
0.03 |
SK8002 |
1/4 |
1/2 |
11.9 |
7.85 |
6.35 |
6.35 |
24.6 |
15.5 |
22.4 |
40.4 |
4.85 |
35.1 |
6.35 |
0.05 |
SK8003 |
5/16 |
3/4 |
13.5 |
9.65 |
7.85 |
7.85 |
29.5 |
19.1 |
26.2 |
48.5 |
5.60 |
42.2 |
7.85 |
0.08 |
SK8004 |
3/8 |
1 |
16.8 |
11.2 |
9.65 |
9.65 |
35.8 |
23.1 |
31.8 |
58.5 |
6.35 |
|
9.65 |
0.13 |
SK8005 |
7/16 |
1-1/2 |
19.1 |
12.7 |
11.2 |
11.2 |
41.4 |
26.9 |
36.6 |
67.5 |
7.85 |
60.5 |
11.2 |
0.20 |
SK8006 |
1/2 |
2 |
20.6 |
16.0 |
12.7 |
12.7 |
46.0 |
30.2 |
41.4 |
77.0 |
9.65 |
68.5 |
12.7 |
0.27 |
SK8007 |
5/8 |
3-1/4 |
26.9 |
19.1 |
15.7 |
16.0 |
58.5 |
38.1 |
51.0 |
95.5 |
11.2 |
85.0 |
17.5 |
0.57 |
SK8008 |
3/4 |
4-3/4 |
31.8 |
22.4 |
20.6 |
19.1 |
70.0 |
46.0 |
60.5 |
115 |
12.7 |
101 |
20.6 |
1.20 |
SK8009 |
7/8 |
6-1/2 |
36.6 |
25.4 |
24.6 |
22.4 |
81.0 |
53.0 |
71.5 |
135 |
12.7 |
114 |
24.6 |
1.43 |
SK80010 |
1 |
8-1/2 |
42.9 |
28.7 |
25.4 |
25.4 |
93.5 |
60.5 |
81.0 |
151 |
14.2 |
129 |
26.9 |
2.15 |
SK80011 |
1-1/8 |
9-1/2 |
46.0 |
31.8 |
31.8 |
28.7 |
103 |
68.5 |
91.0 |
172 |
16.0 |
142 |
31.8 |
3.06 |
SK80012 |
1-1/4 |
12 |
51.5 |
35.1 |
35.1 |
31.8 |
115 |
76.0 |
100 |
191 |
17.5 |
156 |
35.1 |
4.11 |
SK80013 |
1-3/8 |
13-1/2 |
57.0 |
38.1 |
38.1 |
35.1 |
127 |
84.0 |
111 |
210 |
19.1 |
174 |
38.1 |
5.28 |
SK80014 |
1-1/2 |
17 |
60.5 |
14.1 |
41.1 |
38.1 |
137 |
92.0 |
122 |
230 |
20.6 |
187 |
41.1 |
7.23 |
SK80015 |
1-3/4 |
25 |
73.0 |
51.0 |
54.0 |
44.5 |
162 |
106 |
146 |
279 |
25.4 |
231 |
57.0 |
12.1 |
SK80016 |
2 |
35 |
82.5 |
57.0 |
51.0 |
51.0 |
184 |
122 |
172 |
312 |
31.0 |
263 |
61.0 |
19.2 |
SK80017 |
2-1/2 |
55 |
105 |
70.0 |
66.5 |
66.5 |
238 |
145 |
203 |
377 |
35.1 |
330 |
79.5 |
32.5 |
|
|
| ..................................................................................................................................................................................................................................... |

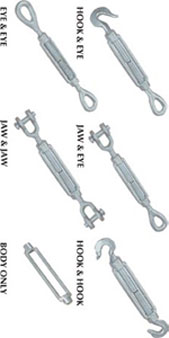

| Turnbuckle |
ITEM NO. |
Size
(Diameter x Take - Up |
Average over all Lenth with
Endes in Closed Position
|
Approx.Weight Each (lbs)
|
Work Load Limit Pounds |
Eyes and/or Hooks |
Jaw &
Eye |
Jaw &
Jaw |
Bodies
Only |
Hook & Hook
Hook & Eye |
Eye & Eye
Jaw&Eye
Jaw & Eye
|
TB8001 |
1/4 x 4 |
8-1/4 |
3 |
3 |
4 |
17 |
400 |
500 |
TB8002 |
5/16 x4-1/2 |
9-9/16 |
5 |
35 |
58 |
25 |
700 |
800 |
TB8003 |
3/8 x 6 |
11-7/8 |
75 |
82 |
93 |
3 |
1000 |
1200 |
TB8004 |
1/2 x 6 |
13-5/16 |
1.50 |
1.62 |
1.68 |
55 |
1500 |
2200 |
TB8005 |
1/2 x 9 |
16-5/16 |
1.75 |
1.82 |
1.85 |
74 |
1500 |
2200 |
TB8006 |
1/2 x 12 |
19-5/16 |
2.18 |
2.19 |
2.20 |
93 |
1500 |
2200 |
TB8007 |
5/8 x 6 |
15-1/2 |
2.63 |
2.59 |
2.82 |
91 |
2250 |
3500 |
TB8008 |
5/8 x 9 |
18-1/2 |
3.00 |
3.01 |
3.25 |
1.2 |
2250 |
3500 |
TB8009 |
5/8 x 12 |
21-1/2 |
3.25 |
3.50 |
3.75 |
1.5 |
2250 |
3500 |
TB8010 |
3/4 x 6 |
17 |
3.75 |
4.25 |
4.68 |
1.3 |
3000 |
5200 |
TB8011 |
3/4 x 9 |
20 |
4.50 |
5.00 |
5.38 |
1.7 |
3000 |
5200 |
TB8012 |
3/4 x 12 |
23 |
5.75 |
5.75 |
6.12 |
2.12 |
3000 |
5200 |
TB8013 |
3/4 x 18 |
29 |
7.00 |
7.25 |
7.25 |
2.93 |
3000 |
5200 |
TB8014 |
7/8 x 6 |
18 |
5.85 |
6.29 |
6.84 |
2.0 |
4000 |
7200 |
TB8015 |
7/8 x 12 |
24-5/8 |
8.38 |
8.88 |
9.36 |
3.0 |
4000 |
7200 |
TB8016 |
7/8 x 18 |
30-5/8 |
10.25 |
10.60 |
11.44 |
4.12 |
4000 |
7200 |
TB8017 |
1 x 6 |
20-5/8 |
8.76 |
9.16 |
9.51 |
2.5 |
5000 |
10000 |
TB8018 |
1 x 12 |
26-5/8 |
11.25 |
12 |
12.88 |
3.86 |
5000 |
10000 |
TB8019 |
1 x 18 |
32-5/8 |
14 |
14.75 |
16.1 |
5.5 |
5000 |
10000 |
TB8020 |
1 x 24 |
38-5/8 |
17 |
17.75 |
18.6 |
7 |
5000 |
10000 |
TB8021 |
1-1/4 x 6 |
20 |
15.45 |
16.03 |
16.69 |
4 |
6500 |
15200 |
TB8022 |
1-1/4 x 12 |
29-7/8 |
19 |
21.2 |
23.6 |
5.93 |
6500 |
15200 |
TB8023 |
1-1/4 x 18 |
35-7/8 |
24.1 |
26 |
26.6 |
8 |
6500 |
15200 |
TB8024 |
1-1/4 x 24 |
41-7/8 |
25 |
28.7 |
31.2 |
10 |
6500 |
15200 |
TB8025 |
1-1/2 x 6 |
22-1/8 |
- |
- |
- |
5.8 |
7500 |
21400 |
TB8026 |
1-1/2 x 12 |
32-3/8 |
27 |
31.1 |
35.5 |
8.4 |
7500 |
21400 |
TB8027 |
1-1/2 x 18 |
38-3/8 |
31.2 |
36.4 |
40.7 |
11.5 |
7500 |
21400 |
TB8028 |
1-1/2 x 24 |
44-3/8 |
38.2 |
42.2 |
47.6 |
14.1 |
7500 |
21400 |
TB8029 |
1-3/4 x 6 |
- |
- |
- |
- |
8.75 |
- |
28000 |
TB8030 |
1-3/4 x 18 |
41-3/4 |
45.0 |
48.8 |
52.4 |
- |
- |
28000 |
TB8031 |
1-3/4 x 24 |
47-3/4 |
58 |
60 |
64 |
- |
- |
28000 |
TB8032 |
2 x 6 |
- |
90 |
- |
- |
12.5 |
- |
37000 |
TB8033 |
2 x 24 |
51-3/4 |
- |
102 |
115 |
27.5 |
- |
37000 |
TB8034 |
2-1/2 x 6 |
- |
- |
|
- |
27.0 |
- |
60000 |
TB8035 |
2-1/2 x 24 |
58-1/2 |
183 |
180 |
200 |
54.0 |
- |
60000 |
TB8036 |
2-3/4 x 24 |
61-1/2 |
180 |
214 |
248 |
54.0 |
- |
75000 |
|
|
|
| |
|
|
| |
|
