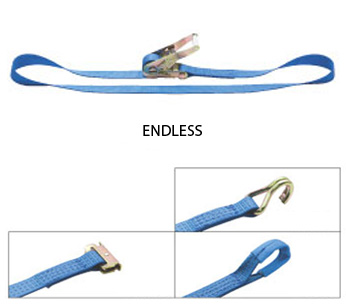

Ratchet Lashing System

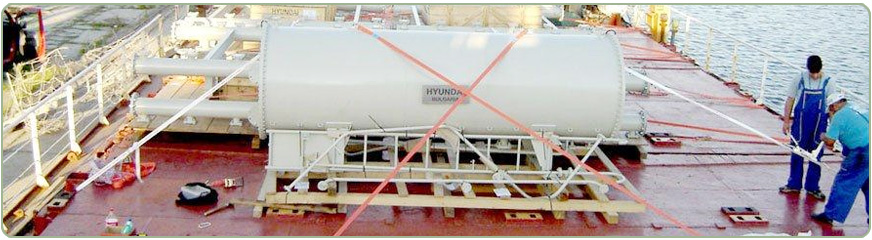

During transportation the cargo and the Cargo Transport Units are exposed to forces with different magnitude and direction depending on if the transport is by road, by rail, at sea, by air or if it’s a combination of these transport modes.

It is a fact that the lashing and securing of cargoes is an essential point of transport process.

Our expertise is prevention of cargo damage by proper lashing and securing.  Our experts are just a call away to assist you of in determining the correct lashing pattern and product, based on your application and transit conditions.

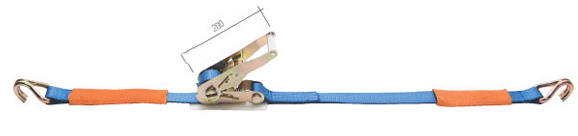

 SL001 (Belt Width: 50 mm)





TWO PART ( WITH HOOK )
Both End Hook
Belt Length
Breaking Load
Adjustable Length
Fixed Length
SL
-
0.3 / 0.5 M
5000 Kgs.

...............................................................................................................................................................................................................................................

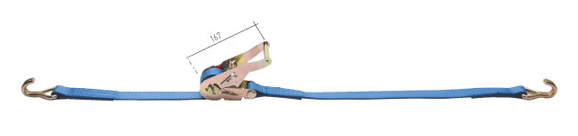

 SL002 (Belt Width: 35 mm)





TWO PART ( WITH HOOK )
Both End Hook
Belt Length
Breaking Load
Adjustable Length
Fixed Length
SL
-
0.3 / 0.5 M
2500 Kgs.

...............................................................................................................................................................................................................................................

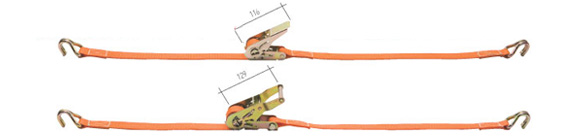

 SL003 (Belt Width: 25 mm) / SL004 (Belt Width: 25 mm)









TWO PART ( WITH HOOK )
Both End Hook
Belt Length
Breaking Load
Adjustable Length
Fixed Length
SL
-
0.3 / 0.5 M
680 Kgs.
        Both End Hook
SL
-
0.3 / 0.5 M
1300 Kgs.

...............................................................................................................................................................................................................................................

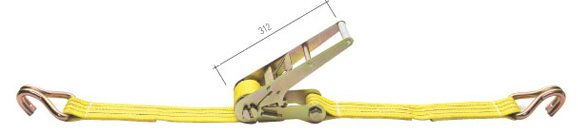

 SL005 (Belt Width : 75 mm)





TWO PART ( WITH HOOK )
Both End Hook
Belt Length
Breaking Load
Adjustable Length
Fixed Length
SL
-
0.3 / 0.5 M
10000 Kgs.
...............................................................................................................................................................................................................................................
Safe Precautions for use with Truck Transportation
»
 Tighten enough within belt strength to fix freight to truck.
»
 Tighten belt according to manufacturer's instruction if any material is used to prevent freight moving.
»
 Attach protective cloth when use for corner of freight to prevent wear or cut.
»
 At any instance, do not tie belt for use.
»
 Do not try to attempt increasing tensile strength with any tools such as lever, etc
»
 Do not try to repair and use without advise from manufacturer.
»
 Use only for tie purpose, not for lifting purpose.
»
 Lubricant at gear at proper intervals for smooth use of buckle.
»
 Do not use old part for repair, it is against safety measure.
»
 Do not throw or drag buckle on the ground. This may cause buckle not operative.
»
 Refrain from direct sunlight, hot weather, heavy rain during use or storage.
»
 Do not use belt at higher than 100 C
